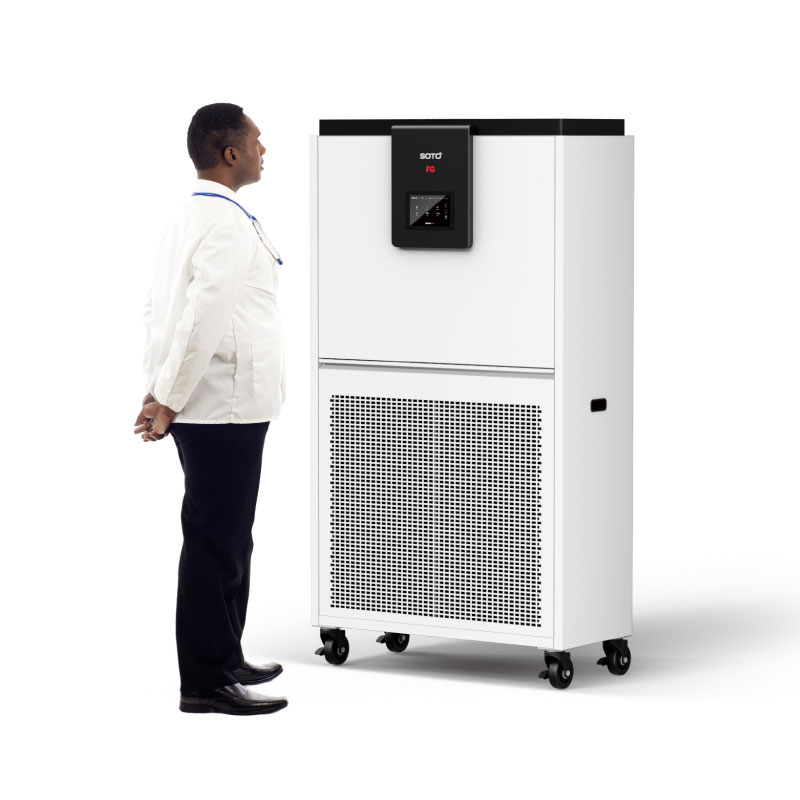

SOTO-AE/Code2000F Air Purifier

This product is an air disinfection and purification device, mainly composed of a metal shell, a metal pre-filter, an electrostatic adsorption unit, a HEPA filter element, an activated carbon filter, an ultraviolet-photocatalyst sterilization system, a negative ion generator and a fan system. Driven by the fan, indoor air enters the device through the air inlet and passes through the electrostatic adsorption unit, HEPA filter element, activated carbon filter and ultraviolet-photocatalyst sterilization system in sequence. Multi-stage synergistic action achieves air purification and disinfection, effectively removing particulate matter and harmful gases, as well as inactivating bacteria and other microorganisms in the air.

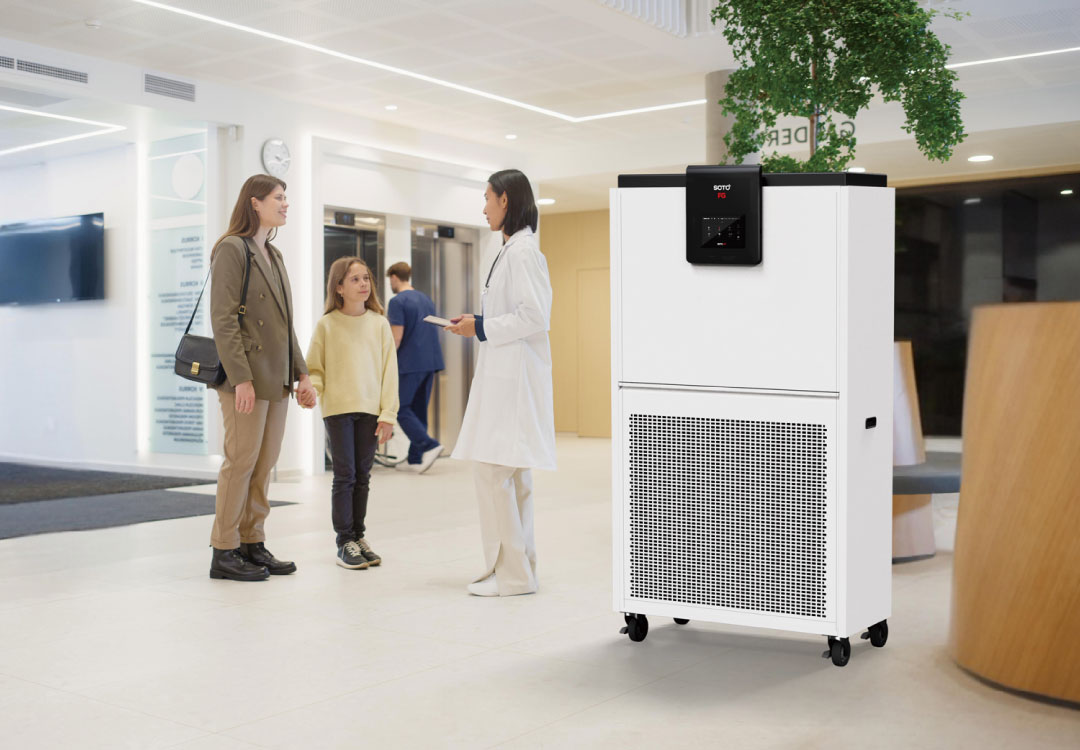

Large medical air purifier designed for large spaces
The air purifier features dual fans and integrates multiple advanced air purification and disinfection technologies to achieve multi-stage purification and sterilization of indoor air. It is suitable for use in large spaces across various industries.

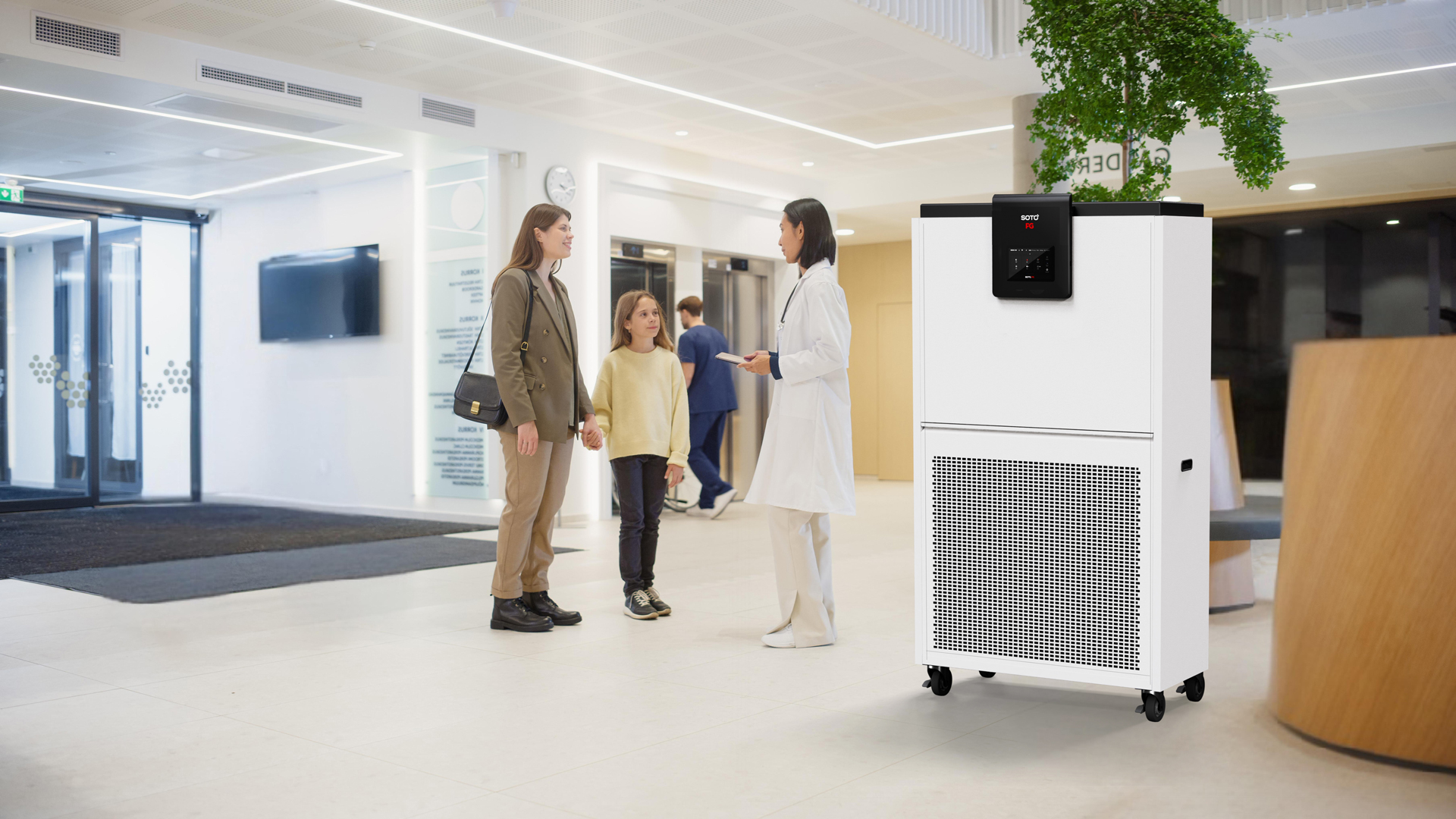

Large medical air purifier designed for large spaces
Large medical air purifier designed for large spaces

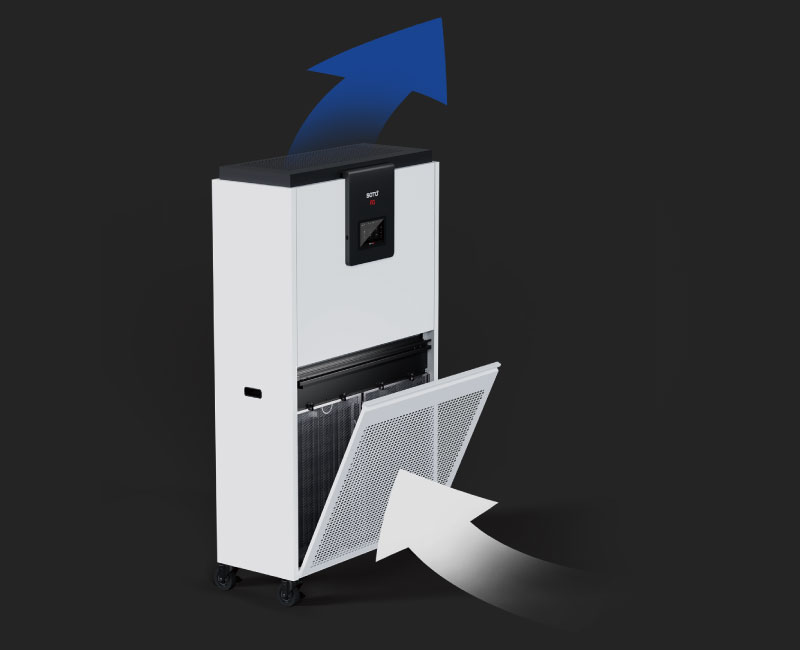

High Air Volume, Dual Fans
High Air Volume, Dual Fans
Equipped with a high air volume dual-fan system, it can efficiently achieve rapid purification and disinfection of indoor air.

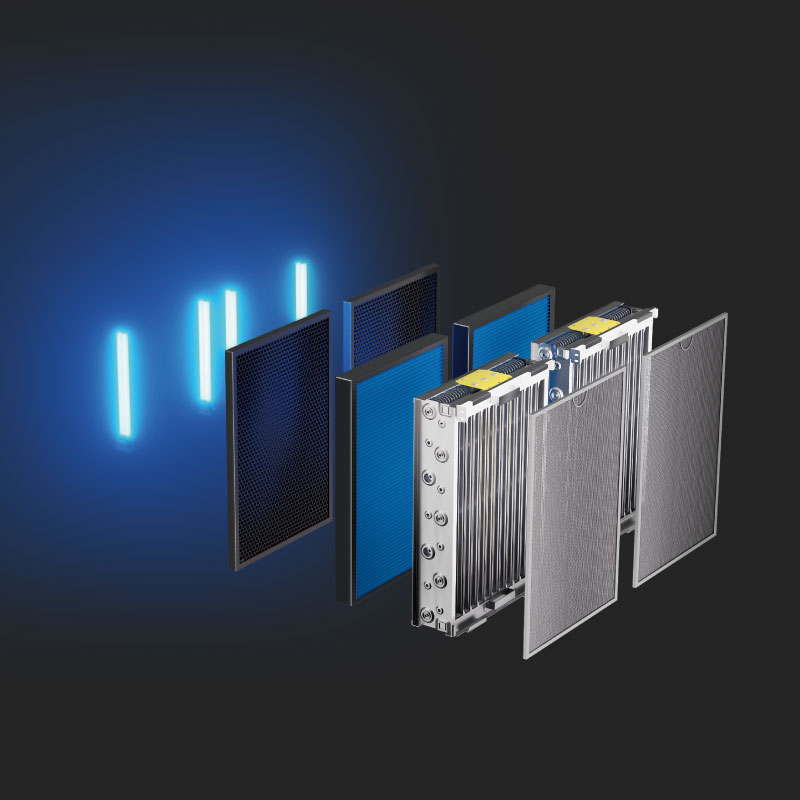

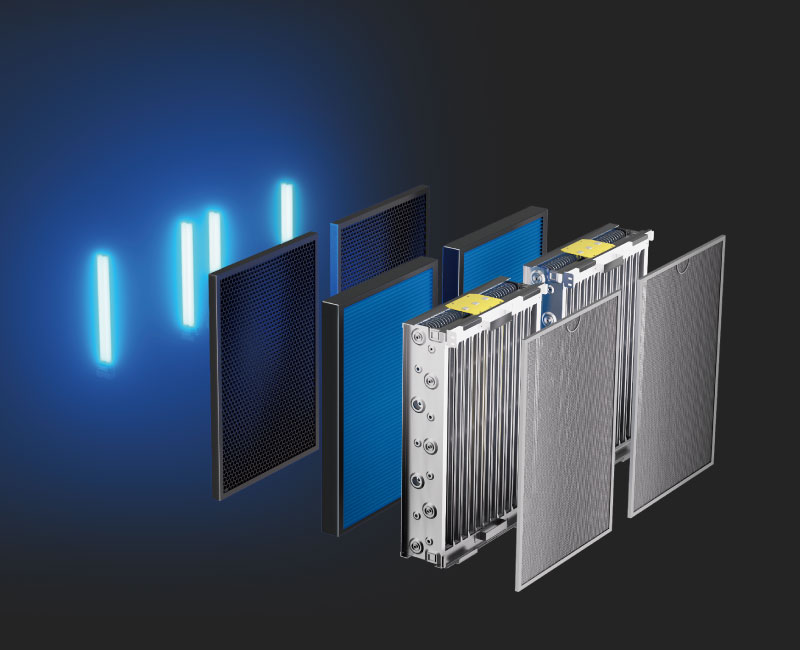

Hybrid filters demonstrate
Hybrid filters demonstrate
The electrostatic adsorption technology is combined with the mechanical filtration system to achieve multi-stage purification and high-efficiency sterilization and disinfection.

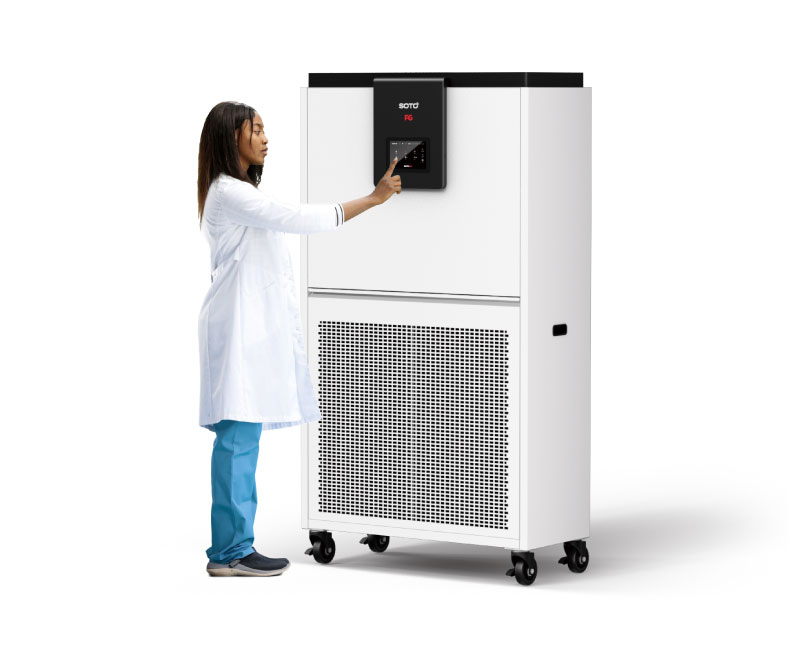

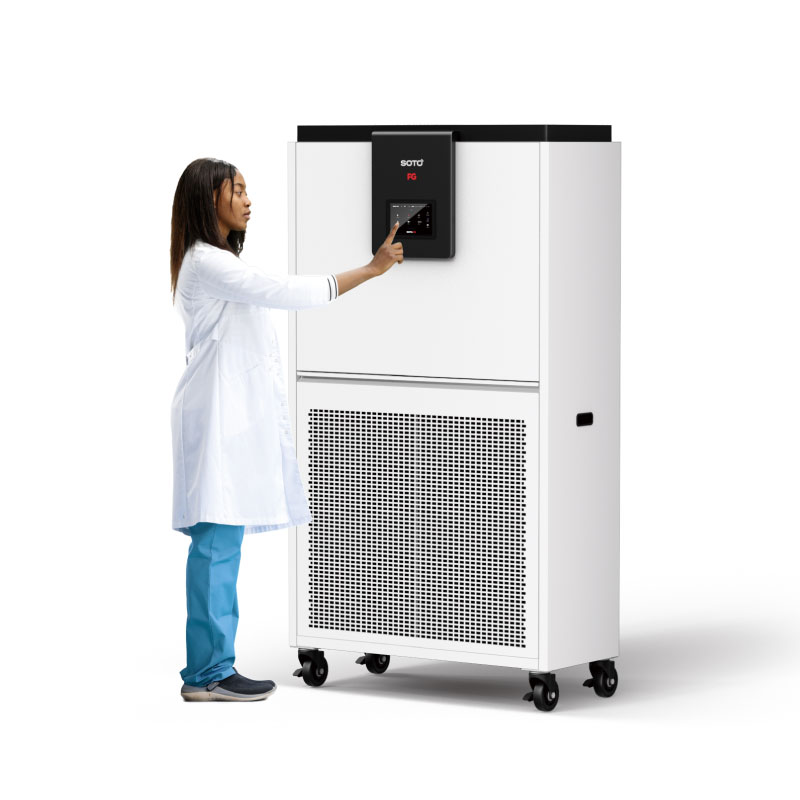

Intelligent Android operating system
Intelligent Android operating system
Equipped with the Android operating system, this device offers a wide range of functionalities and is user-friendly in operation.

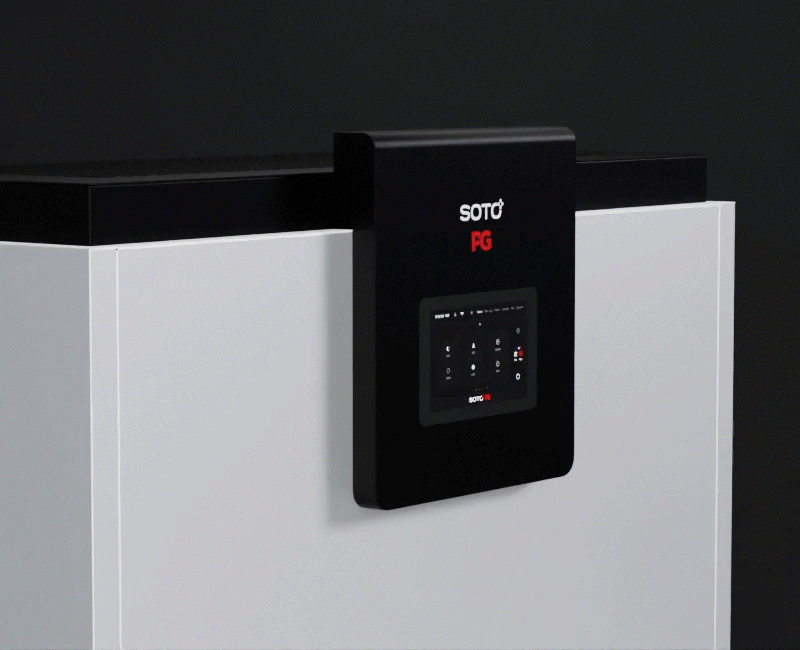

Scheduled machine operation time
Scheduled machine operation time
The on-off timing and air speeds can be programmed in accordance with specified requirements, thereby significantly improving user convenience.
Variations in indoor pollutant levels
Variations in indoor pollutant levels
Real-time dynamic monitoring and display of indoor and outdoor PM2.5 concentrations and TVOC levels, coupled with the capability to analyze trends in pollutant fluctuations.

Specifications

  • Product Name
    Air Purifier
  • Model No.
    SOTO-PG
  • Power Req
    220-240V, 50/60Hz
  • Rated Power
    430W
  • UV Lamp
    4x24W / H-shape, UV-C 254nm
  • Plasma
    ±2x3x10⁶/cm³
  • Fuse
    ac 250V, 5A

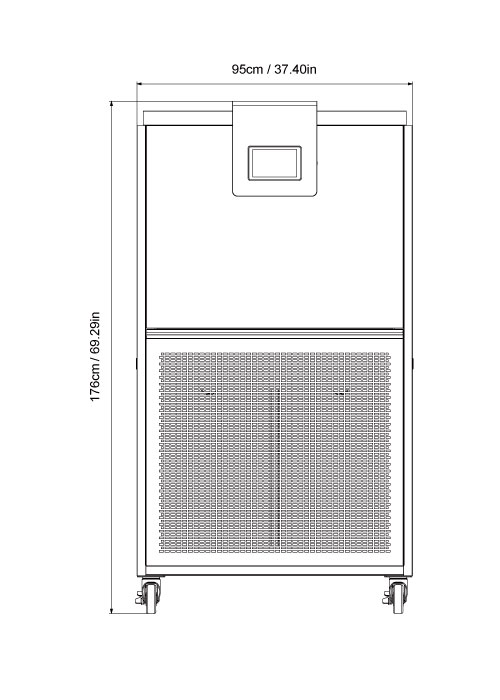

  • Dimensions
    95cmx40cmxH176cm
  • Color
    White
  • Weight
    123kg / 271.17lb
  • Power Cord
    3m
  • Speed
    Speed 1~6+AUTO
  • Operation
    Android Operation System
  • Display
    PM2.5 / TVOC / Speed / Timer / Filters & UV Lamp Usage Status / Scheduling / Operating Logs / Filters & UV Lamp Replacement Notification
  • Main Parts
    Metal Pre-filter-2 / Electronic Cell-2 / HEPA Filter-2 / Carbon Filter-2 / UV Lamp-4
